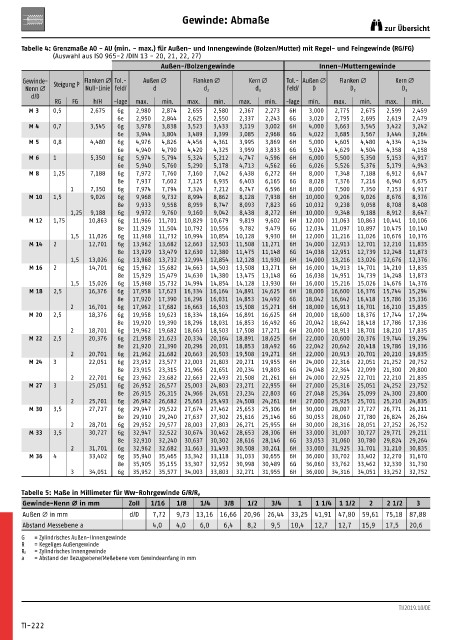

Gewinde: Abmaße
zur Übersicht

Tabelle 4: Grenzmaße AO - AU (min. - max.) für Außen- und Innengewinde (Bolzen/Mutter) mit Regel- und Feingewinde (RG/FG)
(Auswahl aus ISO 965-2 /DIN 13 - 20, 21, 22, 27)
Außen-/Bolzengewinde Innen-/Mutterngewinde

Gewinde- Steigung P Flanken Ø Tol.- Außen Ø Flanken Ø Kern Ø Tol.- Außen Ø Flanken Ø Kern Ø
Nenn Ø Null-Linie Feld/ d d 2 d 3 Feld/ D D 2 D 3
d/D
RG FG h/H -lage max. min. max. min. max. min. -lage min. max. min. max. min.
M 3 0,5 2,675 6g 2,980 2,874 2,655 2,580 2,367 2,273 6H 3,000 2,775 2,675 2,599 2,459
6e 2,950 2,844 2,625 2,550 2,337 2,243 6G 3,020 2,795 2,695 2,619 2,479
M 4 0,7 3,545 6g 3,978 3,838 3,523 3,433 3,119 3,002 6H 4,000 3,663 3,545 3,422 3,242
6e 3,944 3,804 3,489 3,399 3,085 2,968 6G 4,022 3,685 3,567 3,444 3,264
M 5 0,8 4,480 6g 4,976 4,826 4,456 4,361 3,995 3,869 6H 5,000 4,605 4,480 4,334 4,134
6e 4,940 4,790 4,420 4,325 3,959 3,833 6G 5,024 4,629 4,504 4,358 4,158
M 6 1 5,350 6g 5,974 5,794 5,324 5,212 4,747 4,596 6H 6,000 5,500 5,350 5,153 4,917
6e 5,940 5,760 5,290 5,178 4,713 4,562 6G 6,026 5,526 5,376 5,179 4,943
M 8 1,25 7,188 6g 7,972 7,760 7,160 7,042 6,438 6,272 6H 8,000 7,348 7,188 6,912 6,647
8e 7,937 7,602 7,125 6,935 6,403 6,165 6G 8,028 7,376 7,216 6,940 6,675
1 7,350 6g 7,974 7,794 7,324 7,212 6,747 6,596 6H 8,000 7,500 7,350 7,153 6,917
M 10 1,5 9,026 6g 9,968 9,732 8,994 8,862 8,128 7,938 6H 10,000 9,206 9,026 8,676 8,376
8e 9,933 9,558 8,959 8,747 8,093 7,823 6G 10,032 9,238 9,058 8,708 8,408
1,25 9,188 6g 9,972 9,760 9,160 9,042 8,438 8,272 6H 10,000 9,348 9,188 8,912 8,647
M 12 1,75 10,863 6g 11,966 11,701 10,829 10,679 9,819 9,602 6H 12,000 11,063 10,863 10,441 10,106
8e 11,929 11,504 10,792 10,556 9,782 9,479 6G 12,034 11,097 10,897 10,475 10,140
1,5 11,026 6g 11,968 11,732 10,994 10,854 10,128 9,930 6H 12,000 11,216 11,026 10,676 10,376
M 14 2 12,701 6g 13,962 13,682 12,663 12,503 11,508 11,271 6H 14,000 12,913 12,701 12,210 11,835
8e 13,929 13,479 12,630 12,380 11,475 11,148 6G 14,038 12,951 12,739 12,248 11,873
1,5 13,026 6g 13,968 13,732 12,994 12,854 12,128 11,930 6H 14,000 13,216 13,026 12,676 12,376
M 16 2 14,701 6g 15,962 15,682 14,663 14,503 13,508 13,271 6H 16,000 14,913 14,701 14,210 13,835
8e 15,929 15,479 14,630 14,380 13,475 13,148 6G 16,038 14,951 14,739 14,248 13,873
1,5 15,026 6g 15,968 15,732 14,994 14,854 14,128 13,930 6H 16,000 15,216 15,026 14,676 14,376
M 18 2,5 16,376 6g 17,958 17,623 16,334 16,164 14,891 14,625 6H 18,000 16,600 16,376 15,744 15,294
8e 17,920 17,390 16,296 16,031 14,853 14,492 6G 18,042 16,642 16,418 15,786 15,336
2 16,701 6g 17,962 17,682 16,663 16,503 15,508 15,271 6H 18,000 16,913 16,701 16,210 15,835
M 20 2,5 18,376 6g 19,958 19,623 18,334 18,164 16,891 16,625 6H 20,000 18,600 18,376 17,744 17,294
8e 19,920 19,390 18,296 18,031 16,853 16,492 6G 20,042 18,642 18,418 17,786 17,336
2 18,701 6g 19,962 19,682 18,663 18,503 17,508 17,271 6H 20,000 18,913 18,701 18,210 17,835
M 22 2,5 20,376 6g 21,958 21,623 20,334 20,164 18,891 18,625 6H 22,000 20,600 20,376 19,744 19,294
8e 21,920 21,390 20,296 20,031 18,853 18,492 6G 22,042 20,642 20,418 19,786 19,336
2 20,701 6g 21,962 21,682 20,663 20,503 19,508 19,271 6H 22,000 20,913 20,701 20,210 19,835
M 24 3 22,051 6g 23,952 23,577 22,003 21,803 20,271 19,955 6H 24,000 22,316 22,051 21,252 20,752
8e 23,915 23,315 21,966 21,651 20,234 19,803 6G 24,048 22,364 22,099 21,300 20,800
2 22,701 6g 23,962 23,682 22,663 22,493 21,508 21,261 6H 24,000 22,925 22,701 22,210 21,835
M 27 3 25,051 6g 26,952 26,577 25,003 24,803 23,271 22,955 6H 27,000 25,316 25,051 24,252 23,752
8e 26,915 26,315 24,966 24,651 23,234 22,803 6G 27,048 25,364 25,099 24,300 23,800
2 25,701 6g 26,962 26,682 25,663 25,493 24,508 24,261 6H 27,000 25,925 25,701 25,210 24,835
M 30 3,5 27,727 6g 29,947 29,522 27,674 27,462 25,653 25,306 6H 30,000 28,007 27,727 26,771 26,211
8e 29,910 29,240 27,637 27,302 25,616 25,146 6G 30,053 28,060 27,780 26,824 26,264
2 28,701 6g 29,952 29,577 28,003 27,803 26,271 25,955 6H 30,000 28,316 28,051 27,252 26,752
M 33 3,5 30,727 6g 32,947 32,522 30,674 30,462 28,653 28,306 6H 33,000 31,007 30,727 29,771 29,211
8e 32,910 32,240 30,637 30,302 28,616 28,146 6G 33,053 31,060 30,780 29,824 29,264
2 31,701 6g 32,962 32,682 31,663 31,493 30,508 30,261 6H 33,000 31,925 31,701 31,210 30,835
M 36 4 33,402 6g 35,940 35,465 33,342 33,118 31,033 30,655 6H 36,000 33,702 33,402 32,270 31,670
8e 35,905 35,155 33,307 32,952 30,998 30,489 6G 36,060 33,762 33,462 32,330 31,730
3 34,051 6g 35,952 35,577 34,003 33,803 32,271 31,955 6H 36,000 34,316 34,051 33,252 32,752

Tabelle 5: Maße in Millimeter für Ww-Rohrgewinde G/R/R P
Gewinde-Nenn Ø in mm Zoll 1/16 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
Außen Ø in mm d/D 7,72 9,73 13,16 16,66 20,96 26,44 33,25 41,91 47,80 59,61 75,18 87,88
Abstand Messebene a 4,0 4,0 6,0 6,4 8,2 9,5 10,4 12,7 12,7 15,9 17,5 20,6
G = Zylindrisches Außen-/Innengewinde
R = Kegeliges Außengewinde
Rp = Zylindrisches Innengewinde
a = Abstand der Bezugsebene/Meßebene vom Gewindeanfang in mm
